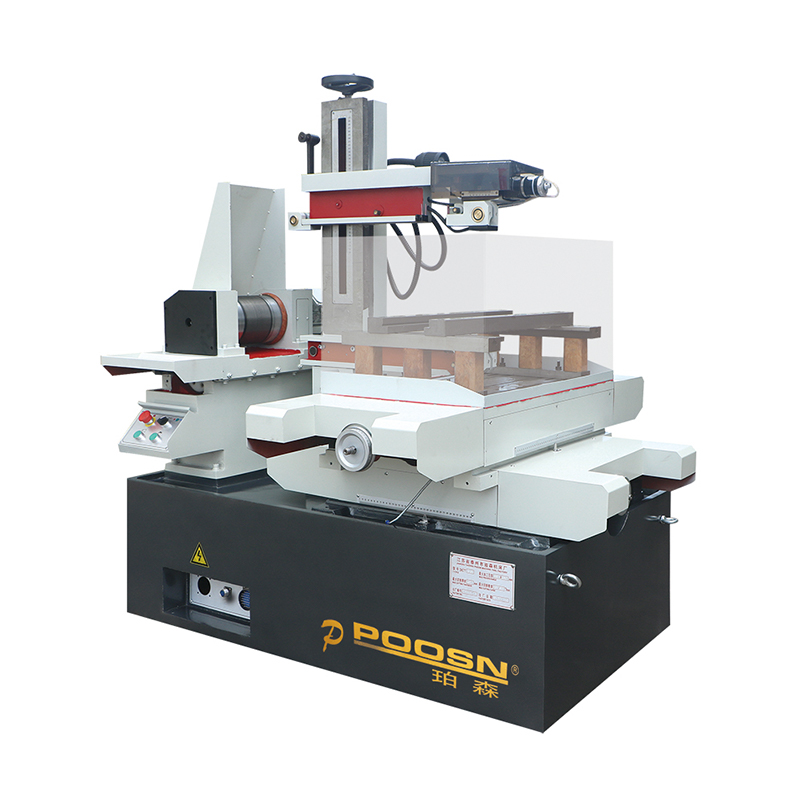

In the realm of modern precision manufacturing, the processing of molds and the production of complex parts impose rigorous demands on the precision and efficiency of machining equipment. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has dedicated years to refining wire-cut EDM technology; its developed DK-7735 High-speed WEDM has emerged as an indispensable core tool in industrial production, distinguished by its exceptional discharge stability and robust mechanical structure design.
Core Technical Architecture and Advantages
During the design phase of the DK-7735, Taizhou Xinchengyang gave full consideration to both durability—essential for high-intensity machining environments—and operational convenience. The following outlines the machine model's technical performance in actual production scenarios:
Reinforced Mechanical Bed Structure
The machine base is constructed from high-strength cast iron that has undergone a rigorous aging treatment to effectively eliminate internal casting stresses. This structural design ensures that the machine maintains exceptionally high geometric precision even during prolonged periods of high-speed reciprocating motion, thereby preventing machining deviations caused by physical deformation.
High-Efficiency Discharge Control System
This model is equipped with an advanced digital pulse power supply capable of automatically optimizing discharge parameters based on the material thickness and specific material properties. While simultaneously boosting cutting speeds, the system effectively minimizes electrode wire consumption and improves the surface finish of the workpiece.
Precision Transmission and Positioning System
By incorporating precision ball screws and high-rigidity linear guides, the DK-7735 achieves extremely fine and precise feed control. Whether processing micro-holes or intricate contour curves, the system ensures absolute consistency in the machining trajectory.

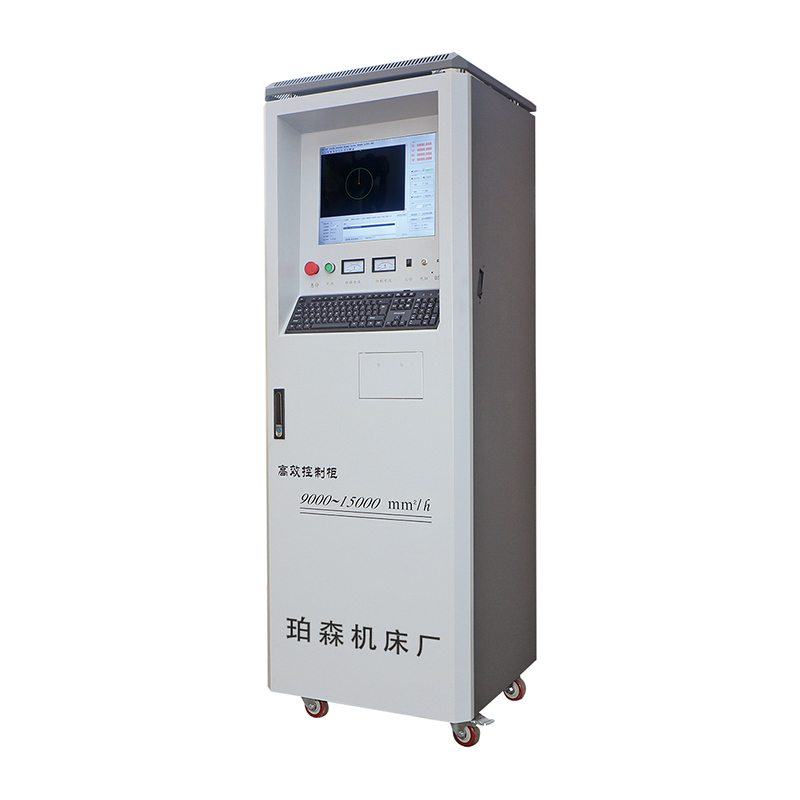

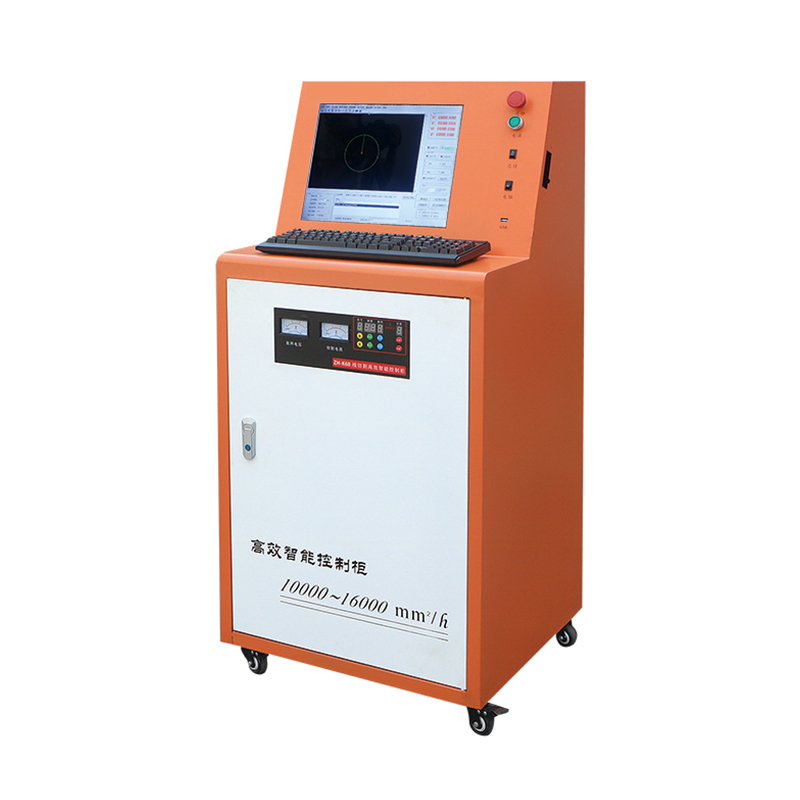

User-Friendly Operating System and Safety Enclosure
Taizhou Xinchengyang has outfitted the DK-7735 with an intuitive programming interface, streamlining the workflow from technical drawings to actual machining. Furthermore, the comprehensive safety enclosure design not only safeguards the operator but also effectively prevents the splashing of working fluid, thereby maintaining a clean and tidy workshop environment.
Comparison of Key Component Functions
To assist technical personnel in gaining a more intuitive understanding of the equipment's characteristics, the table below outlines the key technical focus points of the DK-7735 across various machining dimensions:
| Technical Dimension |
Core Functional Description |
Production Value |
| Wire Transport Mechanism |
High-sensitivity tension control design |
Ensures stable wire travel and significantly reduces the risk of wire breakage. |
| Worktable Drive System |
Closed-loop/Semi-closed-loop feedback control |
Enhances repetitive positioning accuracy during long-stroke machining operations. |
| Filtration System |
Multi-stage integrated circulation and cooling |
Maintains dielectric fluid purity, extending the service life of internal components. |
| Control Algorithms |
Path optimization and automatic gap compensation |
Improves machining quality for sharp corners and intricate geometric profiles. |
Taizhou Xinchengyang's Manufacturing Philosophy
Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. remains steadfastly customer-oriented, deeply embedding the principles of "stability" and "efficiency" into the manufacturing process of every DK-7735 machine. We fully understand that the true quality of a wire-cut EDM machine is determined not merely by its precision specifications at the time of shipment, but—more importantly—by its performance after thousands of hours of continuous operation.
Through the continuous iteration of the DK-7735's hardware structure and the meticulous refinement of its process algorithms, we empower our partners to achieve significant technological breakthroughs across the automotive components, medical devices, aerospace, and hardware mold manufacturing sectors.
Frequently Asked Questions (FAQ)
Common Technical Inquiries Regarding the DK-7735
Q: How does the DK-7735 ensure verticality when processing exceptionally thick workpieces?
A: This model utilizes an enhanced, high-rigidity column design and precision wire-guide assemblies. Coupled with a stable pulse output, this configuration effectively suppresses wire vibration during high-thickness machining, thereby guaranteeing the vertical precision of the machined surface.
Q: Does this Taizhou Xinchengyang machine have any specific requirements regarding the operating environment?
A: To ensure optimal performance, it is recommended that the equipment be situated in an environment with stable temperature control, free from strong magnetic interference, and featuring a floor capable of meeting the necessary load-bearing standards. Adequate ventilation and a stable foundation are prerequisites for achieving high-precision machining results.
Q: How can one effectively extend the service life of the machine's moving components?
A: Regularly inspecting the lubrication system and utilizing high-quality working fluid are of paramount importance. The Taizhou Xinchengyang design incorporates easily accessible maintenance points; operators should strictly adhere to the maintenance manual when performing daily cleaning and lubrication tasks.
Q: Does the DK-7735 support the machining of complex, irregular trajectories?
A: Yes, it does. The machine's control system features multi-axis linkage expansion capabilities, enabling it to effortlessly execute complex processes—such as taper cutting and upper/lower profile cutting—thereby meeting the specific customization requirements for unique parts.
