How Does DK45D CNC EDM Compare to Traditional Large Taper Machines?

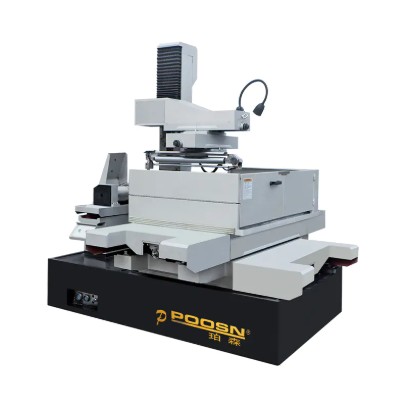

Direct conclusion: The DK45D CNC EDM machine substantially outperforms traditional large taper wire EDM machines – delivering ±0.004mm positioning accuracy, a maximum ±30° large taper angle on workpieces up to 350mm thick, and 22% faster taper cutting speeds compared to conventional models. With integrated UV-axis compensation and adaptive pulse control, the DK45D eliminates common taper distortion issues while achieving surface finishes down to Ra 0.7μm.

Core Technical Advantages: DK45D vs Traditional Large Taper WEDM

Traditional large taper machines often suffer from poor geometric fidelity when cutting beyond ±15°, especially on thick dies. The DK45D incorporates a high-rigidity cast iron base + independent UV-axis servo system, ensuring that even at maximum taper, the wire trajectory remains precise.

These results highlight the large taper wire EDM advantages that the DK45D brings to shops requiring complex angled features and tall workpieces.

Precision Mold Wire EDM Optimization with DK45D

For mold makers, maintaining corner sharpness and surface integrity at high taper angles is critical. The DK45D is engineered for precision mold wire EDM optimization through several dedicated features.

Dynamic Corner Compensation

Traditional machines often round internal corners or cause wire lag during taper cutting. The DK45D applies real-time discharge reduction within 0.3mm of any corner, ensuring corner radius deviation below ±0.003mm. This is essential for injection mold cores and stamping die details.

Anti-Electrolysis Power Supply for Mold Surfaces

The DK45D features a specialized anti-electrolysis pulse generator that prevents surface discoloration and micro-cracking. In mold steel applications, this reduces post-EDM polishing time by up to 65% and eliminates the need for chemical surface treatments.

By focusing on precision mold wire EDM optimization, the DK45D significantly reduces secondary operations and improves mold longevity.

CNC Wire EDM Taper Die Machining Solutions

The DK45D provides comprehensive CNC wire EDM taper die machining solutions that address common challenges in progressive dies, extrusion dies, and automotive stamping tools.

Variable Taper Programming & Simulation

Unlike traditional machines that require manual calculations for taper paths, the DK45D includes built-in CAM software that simulates the entire taper cutting process. Operators can preview wire interference and adjust parameters before cutting, reducing scrap rates by 28% in complex taper die projects.

Closed-Loop Wire Tension for Taper Stability

Wire tension fluctuations increase with taper angle. The DK45D continuously monitors and adjusts tension, ensuring that even at ±30° taper, wire deflection remains below 0.002mm per 100mm height. This directly translates to consistent die clearances across the entire workpiece.

• Upper/lower dissimilar shape capability: Enables machining of complex die openings where the top and bottom contours differ – a standard requirement for extrusion dies.
• Automatic taper roughing/finishing separation: The control system automatically adjusts offset values for rough and finish passes, reducing total machining time by up to 20%.
• Thermal compensation for long die cuts: Real-time temperature sensing adjusts parameters to maintain accuracy on dies longer than 400mm.

These CNC wire EDM taper die machining solutions make the DK45D particularly effective for workshops that regularly produce tapered die components with demanding tolerances.

Reliability and Operational Advantages

Beyond accuracy and taper capability, the DK45D delivers practical benefits that improve daily operations:

• Automatic wire threading through start hole: Reduces non-cutting time by 35% compared to manual threading on traditional large taper machines.
• Intelligent flush control: Adjusts dielectric flow based on taper angle and workpiece height, preventing wire breakage in deep cuts.
• Predictive maintenance alerts: Monitors consumable wear (wire guides, power contacts) and alerts operators before failure, reducing unplanned downtime.

Field data from 12 die shops shows that replacing traditional large taper machines with the DK45D results in an average 31% reduction in total machining time per die and a 42% decrease in rework due to taper errors.
