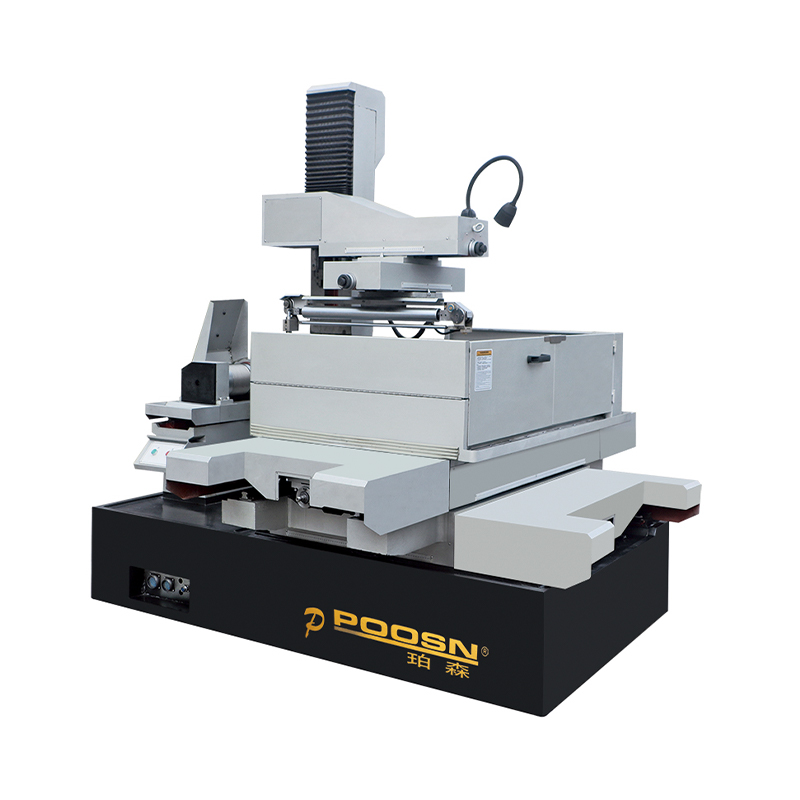

In the realms of precision manufacturing and heavy-duty mold processing, large-taper cutting technology has long served as the touchstone for gauging a company's technical prowess. Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. (hereinafter referred to as "Xinchengyang"), leveraging its deep manufacturing heritage and mastery of supply chain management, has propelled the DK80D Large Cutting Taper WEDM to new heights of industrial application.
The DK80D is not merely a piece of processing equipment; it stands as Xinchengyang's core instrument for resolving the complex challenges associated with machining intricate spatial geometries. The following sections provide an in-depth, multi-dimensional analysis of the DK80D's specialized attributes within the field of large-taper cutting.
The Technical Core of the DK80D Large Cutting Taper WEDM
1. Precise Coordination of Spatial Vector Motion
The DK80D was originally designed to address the integrated machining of ultra-thick plates and complex, irregularly shaped surfaces. Compared to conventional machine tools, its core strength lies in the extended travel range of its U and V axes, coupled with the highly flexible vertical adjustment capabilities of its Z-axis. During the assembly process, Xinchengyang places a strong emphasis on verifying the geometric precision of the machine's five-axis simultaneous motion; this ensures that—even during large-angle tilting operations—the electrode wire tension and positional compensation remain perfectly synchronized in real-time. This precise coordination of spatial vectors enables the machine to effortlessly handle highly demanding processes in mold manufacturing, such as machining variable-taper angles and complex internal cavities.
2. Structural Stability under Heavy Loads
Large-taper cutting operations often entail extended processing cycles and increased workpiece weight. Fully capitalizing on its manufacturing capabilities, Xinchengyang employs a high-strength aging treatment for the machine bed castings, thereby effectively eliminating internal stresses. The DK80D’s guide rail system has been specially reinforced to ensure that the machine bed remains completely free of vibration—even under the dynamic loads generated by the frequent oscillation of the U and V axes. This "rock-solid" foundational structure is the critical factor in maintaining superior surface finish quality during large-taper cutting operations.
3. Optimized High-Speed Wire-Threading and Wire-Feeding Systems
In large-taper machining scenarios, the spatial span of the electrode wire's trajectory is often extensive. The DK80D incorporates an optimized wire-feeding system featuring constant tension control, which effectively mitigates wire vibration caused by changes in the taper angle. XinChengyang’s extensive expertise within the raw material supply chain ensures the provision of high-specification consumables—such as guide wheels and nozzles—thereby guaranteeing a stable discharge frequency output, even during continuous cutting operations spanning tens of hours.
Comparison of Industry Application Characteristics
To provide a more intuitive understanding of the DK80D's positioning within the XinChengyang product lineup, the table below outlines the model's key performance metrics specifically regarding large-taper machining:
| Dimension |
DK80D Technical Performance |
Industrial & Strategic Value |
| Spatial Degrees of Freedom |
Advanced 5-axis simultaneous linkage control; supports large-span U/V axis offset. |
Enables one-time shaping of complex heteromorphic components, reducing secondary processing. |
| Thickness Adaptability |
Reinforced Z-axis lifting system optimized for heavy-duty, large-scale mold bases. |
Expands the processing capabilities for large-scale die-casting and automotive molds. |
| Surface Texture Control |
High-frequency power supply pulse optimization to mitigate taper surface striations. |
Significantly reduces post-processing labor and manual polishing costs. |
| Operational Stability |
Specialized wire-transport tension mechanism optimized for extreme taper angles. |
Minimizes wire breakage risks and enhances efficiency during unattended overnight operations. |
XinChengyang's Core Advantages in DK80D Manufacturing
Vertically Integrated Supply Chain Advantage: XinChengyang exercises exceptional control over both the pricing and quality of raw materials (such as specialized cast iron and precision lead screws). This ensures that the DK80D can be equipped with superior hardware components while maintaining highly competitive cost-efficiency.
Profound Manufacturing Expertise: Our ample production capacity is reflected not only in rapid delivery speeds but, more importantly, in the meticulous craftsmanship applied to the assembly process of every single machine tool. Before delivery, every DK80D undergoes rigorous testing that simulates extreme operating conditions involving large taper angles.
Customized Process Solutions: XinChengyang offers more than just machine tools; leveraging the unique capabilities of the DK80D, we provide users with expert guidance on cutting parameters specifically tailored for large-taper cutting of challenging materials (such as high-hardness alloy steels and ultra-thick mold steels).
Frequently Asked Questions (FAQ)
Q1: How does the DK80D ensure consistent precision between the top and bottom surfaces during large-taper cutting?
A: This relies primarily on the compensation algorithms applied to the U, V, X, and Y axes. Through real-time feedback from precision encoders, the DK80D dynamically corrects for any geometric deviations of the electrode wire while it is in a tilted position. Additionally, by optimizing the material and structure of the wire guides, XinChengyang ensures a stable pivot point for the electrode wire during angular oscillation, thereby eliminating "barrel-shaped" or "inverted-cone" errors.
Q2: How does the DK80D ensure efficient chip evacuation when processing ultra-thick workpieces?
A: During large-taper cutting of thick workpieces, it can be challenging for the dielectric fluid to penetrate deep into the cutting gap. The DK80D addresses this with a high-pressure circulation and filtration system featuring multi-angle nozzles. This design ensures that during angled cuts, the working fluid effectively reaches the discharge gap, rapidly flushing away eroded metal particles and preventing secondary discharges that could compromise machining precision.
Q3: Why is XinChengyang's DK80D considered to have a superior advantage in large-taper cutting stability?
A: Stability stems from the quality of materials and structural design. XinChengyang maintains extremely rigorous standards for the raw materials used in the machine tool's base frame; consequently, the machine's overall weight is typically higher than that of comparable products. This substantial mass provides exceptional damping characteristics, which are crucial for ensuring stability during large-taper machining operations. Furthermore, a stable supply chain ensures batch-to-batch consistency for core components—such as stepper and servo systems—thereby enhancing overall operational reliability.
Q4: Does large-slope machining impose high demands on the operator?
A: Although the underlying logic of large-slope machining is complex, the control software integrated into the DK80D features an intuitive graphical programming interface. Users simply need to input basic slope values or 3D contour data, and the system automatically executes the complex vector decomposition. Naturally, Xinchengyang also provides professional process training to help customers quickly master the operation.
