DK-77 High-speed WEDM Manufacturers

In the modern fields of mold manufacturing and parts processing, Wire Electrical Discharge Machining (WEDM) technology has consistently held a pivotal position. As a dedicated specialist in this sector, Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. has elevated the DK77 series of equipment to new technological heights through continuous R&D and process optimization, introducing the DK-77 High-speed WEDM, the DK77 EDM Wire Cutting Machine, and the DK77 CNC EDM Wire-Cut Machine.

Although these three categories of equipment differ in their specific nomenclature and emphasis, they collectively constitute a comprehensive solution suite offered by Taizhou Xinchengyang, designed to address a diverse range of processing scenarios.

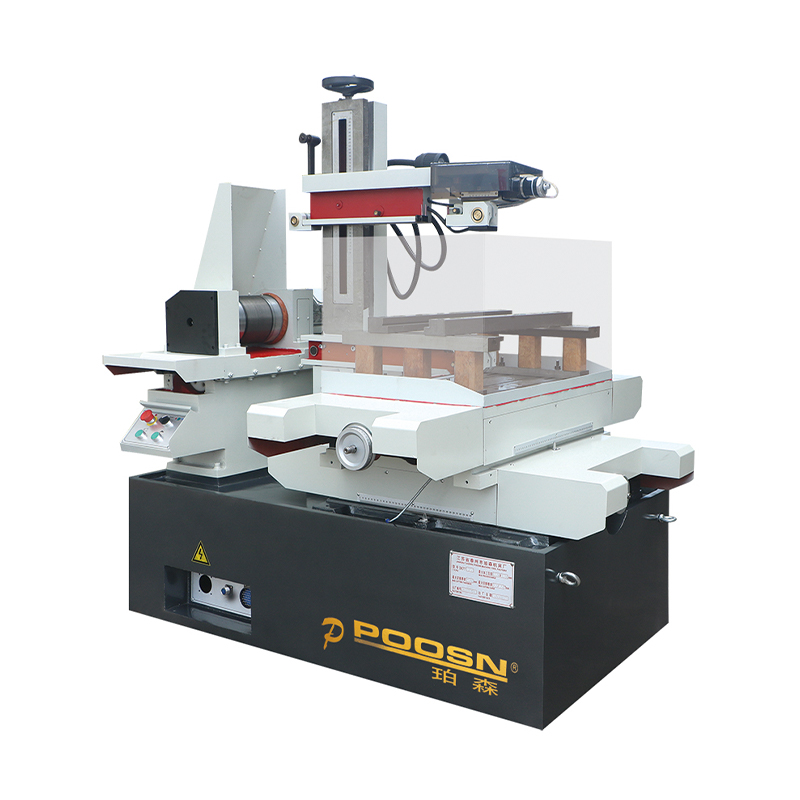

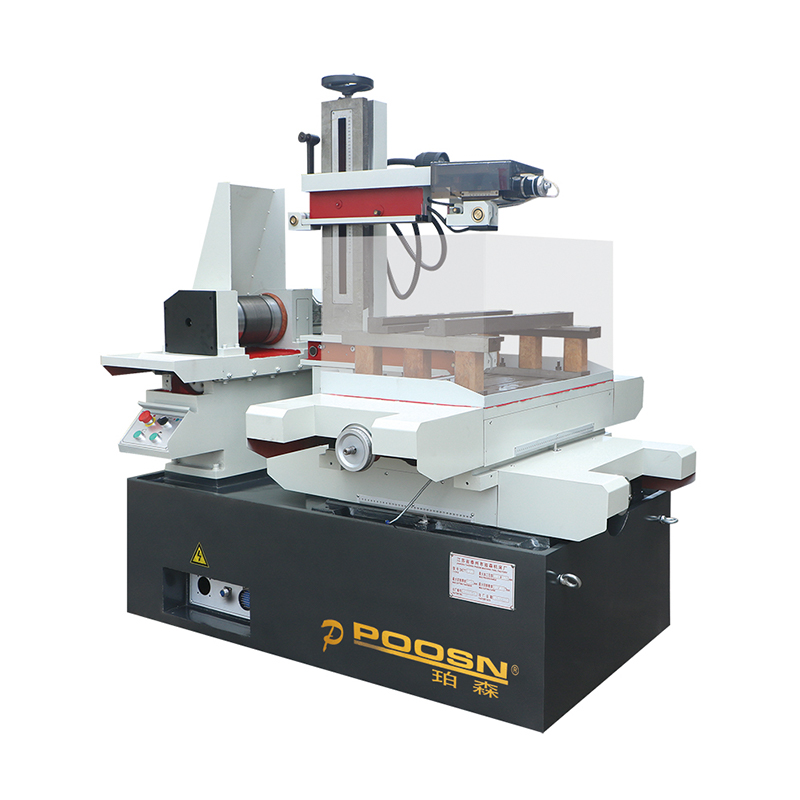

I. DK-77 High-speed WEDM: The Efficient Choice for High-Speed ​​Machining

High-Speed ​​Wire Electrical Discharge Machining (HS-WEDM) represents a traditional area of ​​core expertise for Taizhou Xinchengyang. The DK-77 High-speed WEDM was originally designed to resolve the critical issue of turnaround time in large-batch manufacturing operations.

Stability of the Wire Feeding System: Taizhou Xinchengyang has optimized the dynamic balance of the high-speed rotating wire drum, ensuring that the electrode wire maintains extremely consistent linear tension during its rapid reciprocating motion, thereby minimizing vibration.

Integrated High-Frequency Pulse Power Supply: This model employs a unique pulse discharge control technology capable of achieving stable spark discharges at high frequencies. This feature allows the machine to effectively control the thickness of the recast layer on the material's surface while simultaneously ensuring high cutting efficiency.

Coolant Circulation System: To manage the heat generated during high-speed cutting, the equipment is outfitted with an efficient circulation and filtration system, ensuring that electro-erosion byproducts within the processing zone are rapidly flushed away.

II. DK77 EDM Wire Cutting Machine: The Universal Cornerstone of Industrial Processing

As one of the most ubiquitous productivity tools found in factory workshops, the DK77 EDM Wire Cutting Machine embodies Taizhou Xinchengyang's unwavering pursuit of operational balance. It is not merely a machine, but rather a harmonious fusion of durability and versatility.

Rigidity of Mechanical Structure: Taizhou Xinchengyang utilizes a high-strength cast iron base that undergoes a rigorous aging treatment to eliminate internal stresses. This ensures that the equipment maintains its geometric precision even during prolonged periods of high-load operation.

Precision Transmission Components: The internal lead screws and guide rails within the equipment undergo a strict selection and precision assembly process, guaranteeing the responsiveness and positional accuracy of the machine's coordinate axes. Environmental Adaptability: Whether situated in strictly climate-controlled precision workshops or in general factory environments with complex conditions, this series of machines demonstrates exceptional operational resilience and incurs extremely low maintenance costs.

III. DK77 CNC EDM Wire-Cut Machine: The Core of Digital Manufacturing

With the advancement of Industry 4.0, the DK77 CNC EDM Wire-Cut Machine represents Taizhou Xinchengyang’s deep exploration into the realms of CNC technology and automation. Its core strength lies in the seamless integration of its control system with its mechanical actuators.

Intelligent Control Interface: The CNC system developed by Taizhou Xinchengyang supports a wide range of complex graphic inputs and programming tasks, thereby reducing the operator's reliance on manual adjustments.

Multi-Axis Linkage Potential: This machine model is not limited to simple 2D planar cutting; through the optimization of commands within the CNC system, it is capable of executing precise path planning for complex, irregularly shaped workpieces.

Real-Time Monitoring and Compensation: During the machining process, the CNC system continuously monitors the electrical discharge status in real-time, automatically compensating for wire electrode wear and environmental fluctuations to ensure the consistency of the machining results.

IV. Overview of Technical Specifications for the Taizhou Xinchengyang DK77 Series

To provide a more intuitive understanding of the specific focus areas of these three equipment categories, the table below illustrates their respective positioning within Taizhou Xinchengyang's product matrix:

V. Core Competencies of Taizhou Xinchengyang Machinery Manufacturing

Taizhou Xinchengyang Machinery Manufacturing Co., Ltd. stands out in the market not merely because it offers the aforementioned equipment, but more importantly, due to its deep-rooted manufacturing expertise.

Applied Materials Science: During the manufacturing process of the DK77 series, the company implemented wear-resistance upgrades for critical consumables—such as guide wheels and guide nozzles—thereby significantly extending the service life of these wear parts.

Discharge Algorithm Optimization: Taizhou Xinchengyang's technical team has conducted in-depth matching of discharge characteristics across various materials (including mold steel, cemented carbide, aluminum, etc.), ensuring that the DK77 series performs effortlessly even when processing heterogeneous materials.

Quality Management System: Upholding the philosophy of "Quality First, Customer Foremost," every DK77 machine leaving Taizhou Xinchengyang's facility undergoes rigorous precision inspections and comprehensive burn-in testing, ensuring that the equipment is ready for immediate use upon arrival at the customer's site.

VI. FAQ: Answers to Common Technical Questions

Q1: ​​How does the DK77 series maintain verticality when machining thick workpieces?

Taizhou Xinchengyang effectively counteracts the "lag" phenomenon—where the electrode wire trails behind during the machining of thick parts—by optimizing the structural rigidity of the wire frame and integrating geometric compensation functions within the CNC system. This ensures high verticality precision even for parts of substantial thickness.

Q2: How should I choose between the High-speed and CNC models based on my machining requirements?

If your priority is extremely high production throughput and your surface roughness requirements fall within standard grades, we recommend the DK-77 High-speed WEDM model. However, if you are dealing with precision parts featuring exceptionally complex geometries and extremely tight dimensional tolerances, the DK77 CNC model is the superior choice.

Q3: Do Taizhou Xinchengyang's machines require highly skilled operators?

Our CNC system is designed with user-friendliness as a primary consideration. Thanks to a graphical programming interface and a library of pre-set process parameters, even operators with limited experience can master the core operations in a very short time.

Q4: How does the DK77 series address the issue of wire wear during prolonged machining operations?

Taizhou Xinchengyang has incorporated a constant-tension design into its wire-feeding control system, significantly reducing the risk of wire breakage caused by tension fluctuations. Furthermore, by integrating high-frequency control algorithms, we ensure more uniform wear of the electrode wire, thereby extending the service life of a single wire installation.

Q5: How does the company demonstrate its "Customer First" business philosophy?
In addition to providing high-performance equipment from the DK77 series, we offer comprehensive process guidance and post-sales maintenance support. Taizhou Xinchengyang is dedicated to providing customized parameter recommendations tailored to each user's specific operating conditions, ensuring that our customers can maximize the performance and efficiency of their equipment.
